FTTH LoopBack Fiber Optic Patchcord LC Singlemode Cable
Fiber Optic Loopback Description:
The fiber optic loopback typically it is used for fiber testing applications or network restorations. For the testing applications, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem.
Similar to patch cables, fiber optic loopback can be with various jacket types and cable diameters. The covered Shell protects the fiber and creates a smaller footprint than the non-shelled one.
Fiber Optic Loopback is designed to provide a media of return patch for a fiber optic signal
SC type
- Short wavelength devices
- Compatible with Fast Ethernet
- Fiber Channel, ATM, and Gigabit Ethernet
LC type
- Communications connections
- Equipment interconnection
- Loopback for network components testing
Fiber Optic Loopback Applications:
Device pig-tailing
Premise networks
Patch panel applications
Fiber Optic Loopback Features:
Low insertion loss and high return loss
Good exchangeability and durability
Compact design
Fiber Optic Loopback Specification:
| Item | PARAMETER |
| Single mode | Multi-mode |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | typical≤0.20dB,Max≤0.30dB | typical≤0.40dB,Max≤0.50dB |
| Return Loss | UPC≥50.0dB,APC≥60.0dB | ≥35.0dB |
| Repeatability | ≤0.10dB |
| Interchangeability | ≤0.20dB |
| Durability | ≤0.20dB typical change,1000 mating |
| Operating Temperature | -20ºC to +60ºC |
| Storage Temperature | -40ºC to +85ºC |

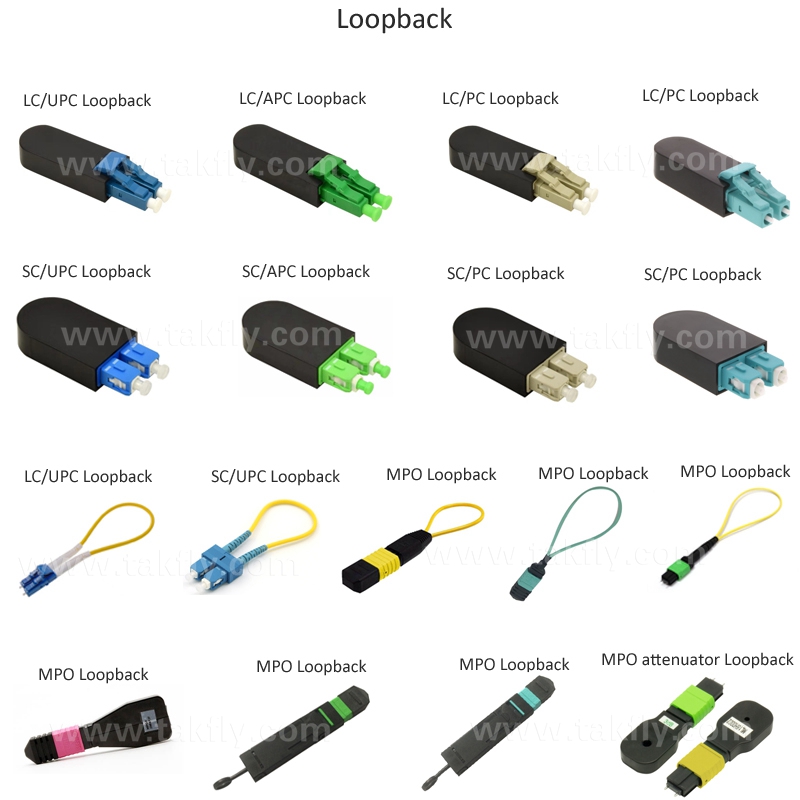

Fiber Optic Loopback types:
How to order Fiber Optic Loopback
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
4.MPO/MTP connector male or female, fiber count (4/8/12/16/24/32 fiber )
