Fiber Optic Patchcord Jumper LC/SC/FC/ST Singlemode/Multimode UPC/APC Simplex/Duplex Customizable

Description:

Fiber optic patch cords is the cable with both ends terminated with fiber optic connectors, which realizes the connection between optic networking equipment and equipment, and equipment and patch cords. Easy operation and convenience make it indispensable as one of the passive products for optic networking construction.
TAKFLY can provides a full range of fiber optic patch cords, whose transmission mode, cable type, and connector type can be optionally matched and even customized as well.

Applications:

The fiber patch cords from TAKFLY are featured with stable transmission and high reliability, and widely applicable in the optic networking scenes, such as data centers, FTTX and LAN etc..

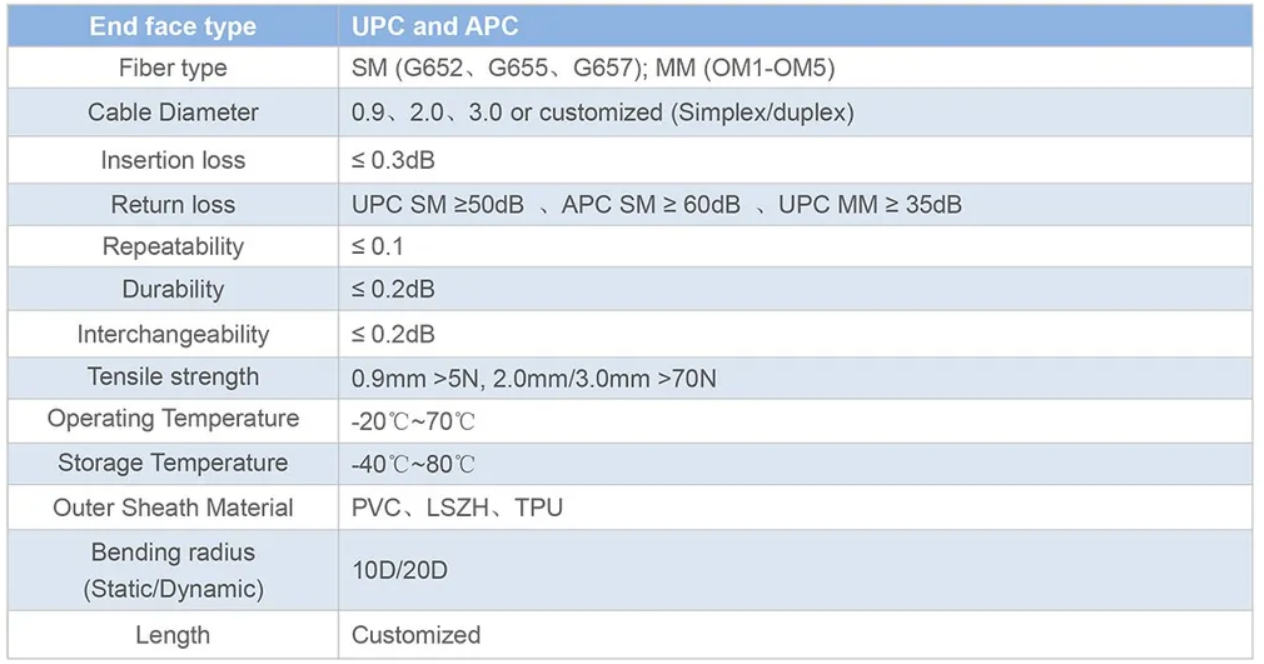

Parameter

Features:

• Selected High Quality Ferrule

• High Quality, 100% Testing

• Multiple Types Optional

How to order Fiber Optic Patchcord

1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement

8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )

Multimode Fiber Optic Patchcord Jumper

Customizable Fiber Optic Patchcord Jumper

Singlemode Fiber Optic Patchcord Jumper

Fiber Optic Patchcord Jumper LC/SC/FC/ST Singlemode/Multimode UPC/APC Simplex/Duplex Customizable Images
