TK-HRS-1096B Height 1U MTP MPO Cassette Patch Panel For Data Center

Name: TKHRS1096B Height 1U MTP MPO Cassette Patch Panel For Data Center
Brand: Takfly/OEM
Price: 1 USD

Brand Name : Takfly/OEM

Model Number : TK-HRS-1096B

Certification : ISO9001; ISO14001

Place of Origin : Shenzhen, China

MOQ : 1 pcs

Price : Can be negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 pieces per week

Delivery Time : 3-7days

Packaging Details : Carton box

Height : 1U

Fiber count : 96F

Test Wavelength (nm) : SM: 1310/1550 MM: 850/1300

Size(L*W*H) : 486*306*44.5mm

Repeatability : ≤ 0.1dB

Durability : ≤ 0.2dB

Interchangeability : ≤ 0.2dB

Contact Now

Takfly series rackmounted patch panel is designed to manage and house easy-plug MPO/MTP to LC fiber cassette modules, for connecting plug-and-play pre-terminated high density MPO/MTP Fiber cabling system.This solution contributes to greater network availability that especially suitable for SAN, LAN and Data Center applications. Each easy-plug MPO/MTP to LC

cassette is accommodated with a 12/24-fiber MPO/MTP based fiber assemblies, and pre-loaded with LC adapters in different fiber modes for your choices.

Application

 Data center

 Telecommunication networks

 CATV

 LAN

 WAN

 FTTX

Features

Two ways of use are free collocation:

1.Install MPO/MTP-LC Cassette module management

Up to 4 Small MPO/MTP modules in 1U Multiple adaptor options available Accepts loose tube, distribution

and pre-terminated cables ROHS, REACH SvHC and UL rated Fits standard 19”,sliding-type design, convenient

for management.

1U high-density size capacity 96 fibers for LC interface

2U high-density size capacity 192 fibers for LC interface

2.Install equipped with LC, SC, FC, and ST adapter panels fusion splice type

Sliding-type design

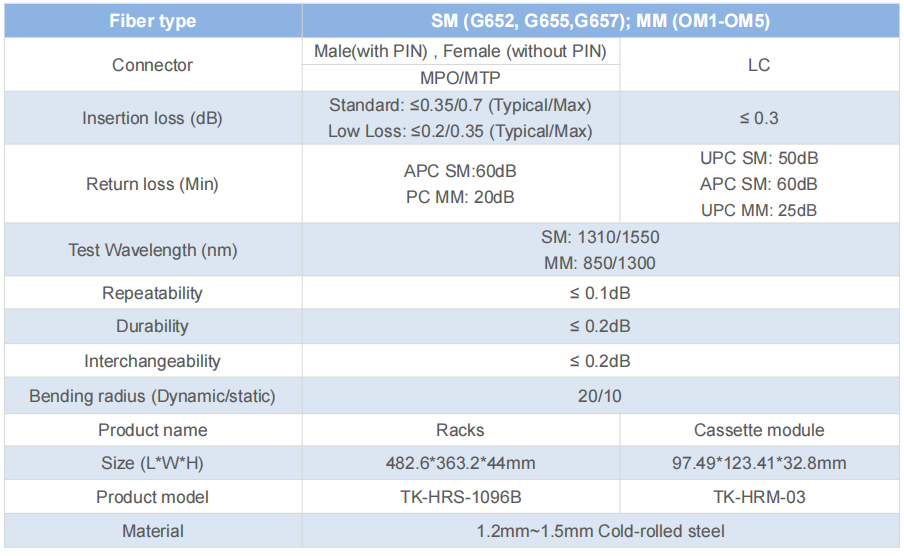

Parameter

TK-HRS-1096B Height 1U MTP MPO Cassette Patch Panel For Data Center
