TK-HRS-1096E MPO/MTP Cassette Management Panel for Data Center Height 1U

Brand Name : Takfly/OEM

Model Number : TK-HRS-1096E

Certification : ISO9001; ISO14001

Place of Origin : Shenzhen, China

MOQ : 1 pcs

Price : Can be negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 pieces per week

Delivery Time : 3-7days

Packaging Details : Carton box

Height : 1U

Fiber count : 96F

Test Wavelength (nm) : SM: 1310/1550 MM: 850/1300

Size(L*W*H) : 486*306*44.5mm

Repeatability : ≤ 0.1dB

Durability : ≤ 0.2dB

Interchangeability : ≤ 0.2dB

Contact Now

1U-19 inch MPO/MTP High-Density rack-mount fiber patch panel is designed for large data center room: MDF application, IDF wiring area optical fiber backbone connection, the fiber distribution unit management, and other the high-density integrated optical fiber environment, etc. It is installed in 19 inch racks and cabinets.

1U 19inch MPO/MTP Patch Panel could load 4 Pre-connected cassette module, and the maximum capacity can be managed is 1152 cores for MPO interface, or 96 cores for LC interface. Each independent pre-terminated module box is placed in the optical fiber distribution frame, to complete the full set patch panel.

Application

 Optical fiber communication dense wiring system between buildings

 Optical link interconnection in optical active equipment for LAN cabling

 Telecommunication base station

 Data center room of industrial area

 Data center room of commercial building

 CATV

 LAN

 WAN

 FTTX

Features

New brand high quality aluminum alloy material, sturdy and durable, electrostatic coating surface after the Strict production process
Installed in 19 inch rack-mount and cabinet, application for cassette modules centralized management.
Two ways of use are free collocation:
1.1U high-density size capacity 96 fibers for LC interface
2.Install equipped with LC, SC, MPO/MTP adapter panels fusion splice type
Male or Female MPO/MTP connector are available. Connected and positioned by PIN and adaptor to achieve precise and high stable connection.
Modular design, plug-in locking structure, the fiber has a clear line sequence identification, easy to test, install, remove and adjust the mating.
The cassette module and patch panel are small in size, lightweight, impact-resistant, high-pressure, flame-retardant, corrosion-resistant, strong structure to protect the internal optical fiber, ultra-high sealing performance to facilitate dust-proof, innovative design for advanced network equipment.

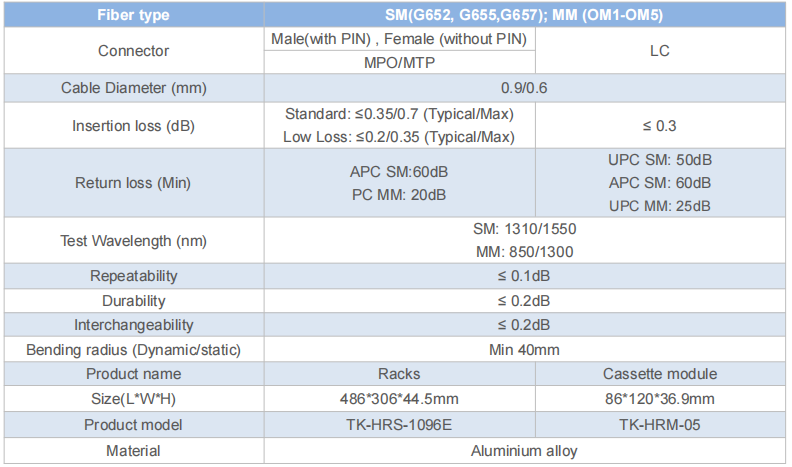

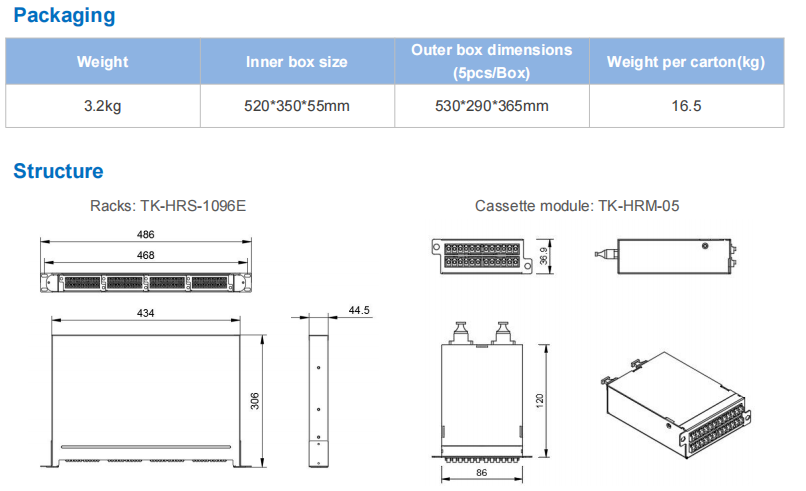

Parameter
TK-HRS-1096E MPO/MTP Cassette Management Panel for Data Center Height 1U
TK-HRS-1096E MPO/MTP Cassette Management Panel for Data Center Height 1U
