144 Core Super-high Density MPO Patch Panel Height 1U For Data Center

1U-19 inch MPO/MTP High-Density rack-mount fiber patch panel is designed for large data center room: MDF application, IDF wiring area optical fiber backbone connection, the fiber distribution unit management, and other the high-density integrated optical fiber environment,etc. It is installed in 19 inch racks and cabinets.

1U 19inch MPO/MTP Patch Panel could load 12 Pre-connected cassette module, and the maximum capacity can be managed is 144 cores for LC interface. Each independent pre-terminated module box is placed in the optical fiber distribution frame, to complete the full set patch panel.

 Optical fiber communication dense wiring system between buildings

 Optical link interconnection in optical active equipment for LAN cabling

 Telecommunication base station

 Data center room of industrial area

 Data center room of commercial building

 CATV

 LAN

 WAN

 FTTX

Features

 Installed in 19 inch rack-mount and cabinet, application for cassette modules centralized management.

 1U high-density size capacity 144 fibers for LC interface

 2U high-density size capacity 288 fibers for LC interface

 4U high-density size capacity 576 fibers for LC interface

 Male or Female MPO/MTP connector are available. Connected and positioned by PIN and adaptor to achieve precise and high stable connection.

 Modular design, plug-in locking structure, the fiber has a clear line sequence identification, easy to test, install, remove and adjust the mating.

 Sturdy and durable, electrostatic coating surface after the Strict production process.

 The cassette module and patch panel are small in size, lightweight, impact-resistant, high-pressure, flame-retardant, corrosion-resistant, strong structure to protect the internal optical fiber.

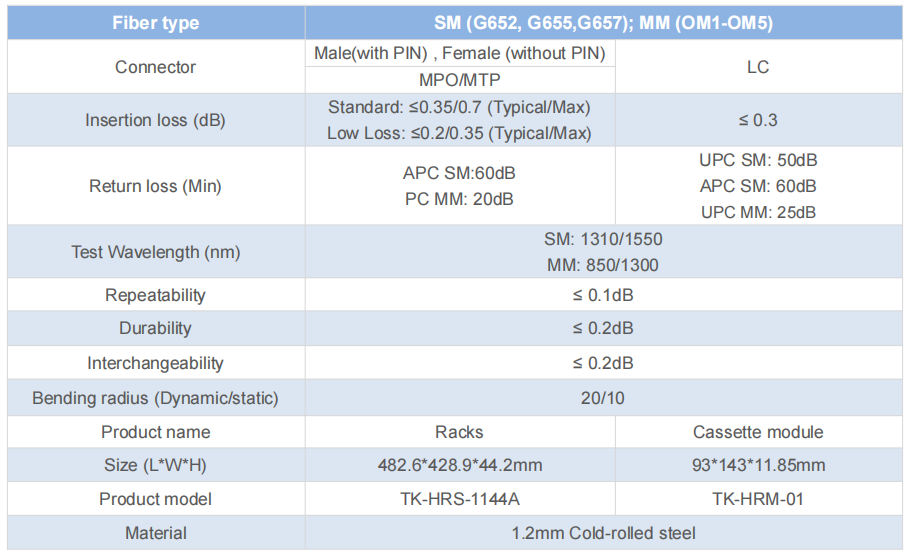

Parameter
