SM/MM MPO Pigtail Patch Cord MTP Trunk Cable ODVA-MPO/MTP Waterproof for Data Center FTTX

Waterproof MPO/MTP Pigtail

Description:

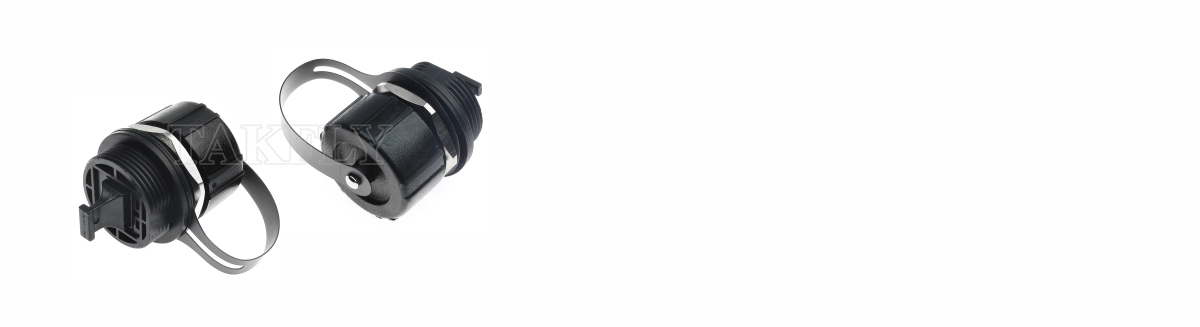

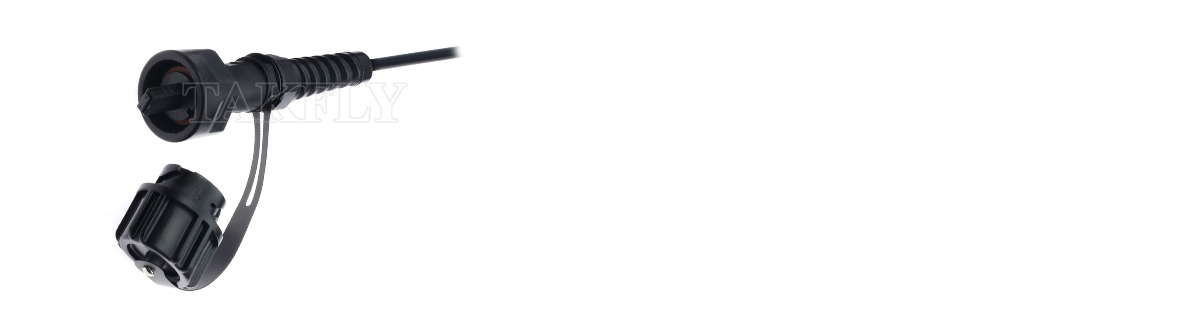

ODVA-MPO/MTP Waterproof Pigtail

The ODVA-MPO/MTP connectors, together with the support optical cable, are becoming the standard interface in 3G 4G and WiMax Base Station remote radios and Fiber-to-the Antennaapplications.

The product however, is not limited to the above applications.The MPO cable assembilies have passed tests like salt mistyibration and shock and meet protection class IP67. They are well suited forndustrialand Aerospace and Defense.

Application:

ODVA-MPO/MTP outdoor waterproof pigtail IP67 suitable for industrial and military environment, often used for waterproof docking of tower top and communication base station equipment ports.

• Asynchronous Transmission Mode(ATM)

• Gigabit Ethernet

• Active Deviced/Transceiver Interface

• CATV, Video and Multimedia

• Premise Installations

• Telecommunication Networks

• Parallel optical interconnect between PC Cards and patch panels

• Interconnection for O/E modules

• Industrial & Military

• Optical Switch interframe connections

Bayonet locked

Bayonet-style mechanical lock which will not easily loosen due to external force, easy to install and disassemble.

MPO/MTP connector is available

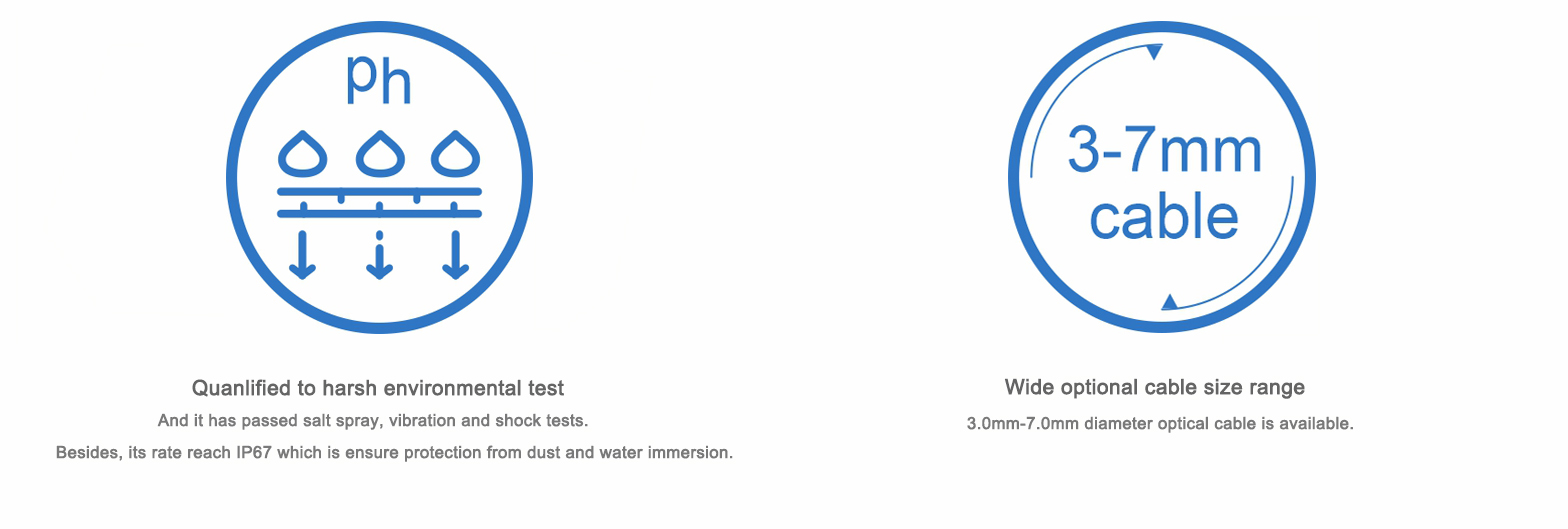

Quanlified to harsh environmental test, wide optional cable size range

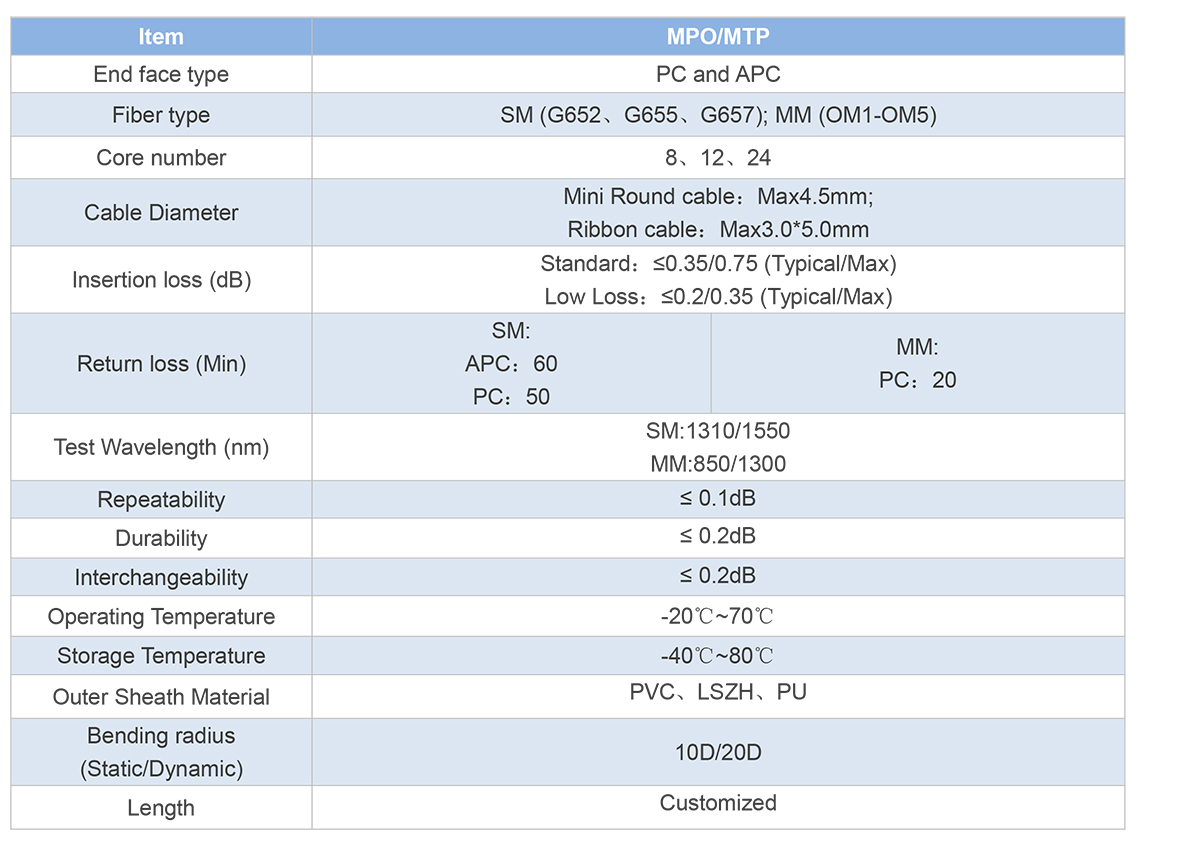

Parameters:
