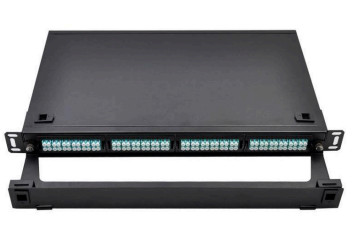

96F Cassette Adapter Panel 1U Rack Mount MPO Patch Panel for Data Center Height 1U

Name: 96F Cassette Adapter Panel 1U Rack Mount MPO Patch Panel for Data Center Height 1U
Brand: Takfly/OEM
Price: 22.86 USD

China 96F Cassette Adapter Panel 1U Rack Mount MPO Patch Panel for Data Center Height 1U wholesale

Brand Name : Takfly/OEM

Model Number : TK-HRS-1096F

Certification : ISO9001:2015

Place of Origin : Shenzhen China

MOQ : 1

Price : USD 22.86

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 pieces per week

Delivery Time : 1~3 days

Packaging Details : Carton box

Height : 1U

Fiber count : 96F

Cassette : 4*24F MPO-LC

Size(L*W*H) : 482.6*343*44mm

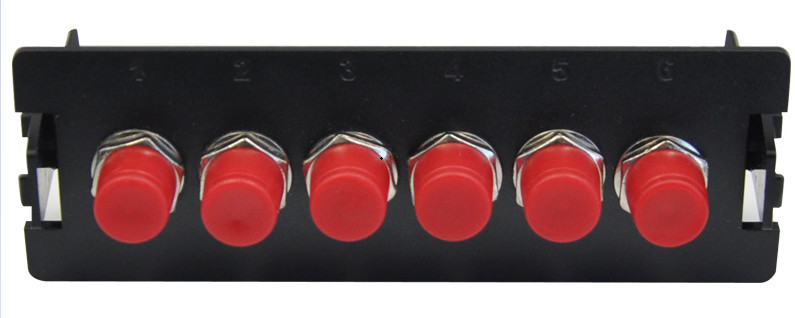

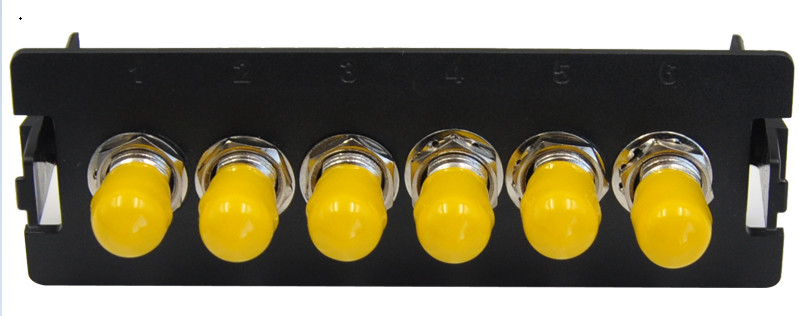

Adapter Panel : Support SC LC FC ST

Contact Now

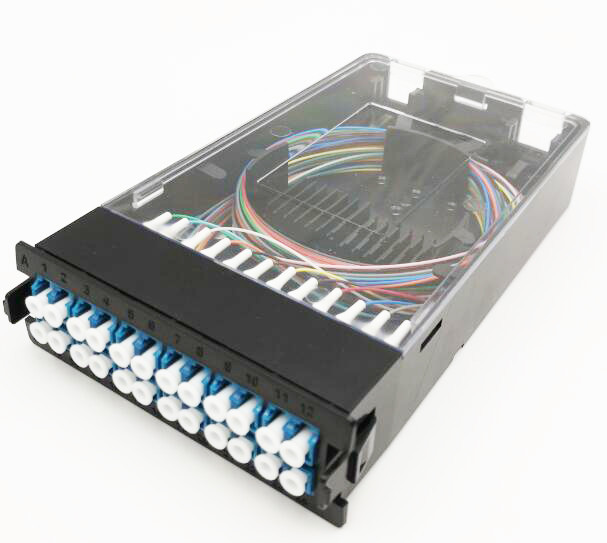

Takfly series rack mounted patch panel is designed to manage and house easy-plug MTP / MPO to LC fiber cassette modules, for connecting plug-and-play pre-terminated high-density MTP / MPO Fiber cabling systems.This solution contributes to greater network availability that especially suitable for SAN, LAN, and Data Center applications. Each easy-plug MTP / MPO to LC cassette is accommodated with a 12/24-fiber MTP / MPO

based fiber assemblies, and pre-loaded with LC adapters in different fiber modes for your choices.

specifications

Fiber type	SM (G652, G655,G657); MM (OM1-OM5)
Connector	Male (Pin needle), Female		LC
	MPO/MTP		≤ 0.3
Return loss (Min)	APC SM:60dB	PC MM: 20dB	UPC SM: 40dB APC SM: 60dB
Test Wavelength (nm)	SM: 1310/1550 MM: 850/1300
Repeatability	≤ 0.1dB
Durability	≤ 0.2dB
Interchangeability	≤ 0.2dB
Bending radius (Dynamic/static)	20/10
Product name	Racks		Cassette module
Size (LWH)	482.634344mm		96.5160.132.7mm
Product model	TK-HRF-1096F		TK-HRM-04
Material	1.2mm~1.5mm Cold-rolled steel

96F Cassette Adapter Panel 1U Rack Mount MPO Patch Panel for Data Center Height 1U
