Elite Multimode OM4 50/125, Plenum OFNP Type B MPO patch cord 3m 10ft MTP-12 PC Female to MTP-12 PC Female

Brand Name : Takfly/OEM

Model Number : MPO to MPO patch cord

Certification : ISO9001:2015

Place of Origin : Shenzhen China

MOQ : 1

Price : USD 22.44

Payment Terms : L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 pieces per week

Delivery Time : 3~5 days

Packaging Details : Individual Antistatic packaging bag and carton box

Cable : 3.0mm OM4 indoor micro violet plenum OFNP

Connector : US Conec MTP® 12F PC Female Elite

Insertion loss : <0.35dB

Return loss : >20dB

Polarity : B

Contact Now

US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

Takfly provides a full range of MPO/MTP patch cords, and top-rank customized service regarding cable type, transmission mode, connector type, and polarity.

Features
Precision molded MT ferrule
High-precision guide pins for exact alignment
Stable low insertion loss
IEC 61754-7 and EIA/TIA-604-5 Compliant

Specifications

Connector A US Conec MTP® Female Connector B US Conec MTP® Female
Optical fiber Multimode OM4 50/125 Fiber count 12
Endface PC-PC Polarity B
Wavelength 850/1300nm Return loss >20dB
Insertion loss <0.35dB Cable diameter 3.0mm
Cable color Violet Cable jacket Plenum
Operating temperature -20~+70℃ Storage temperature -40~+80℃

Pictures

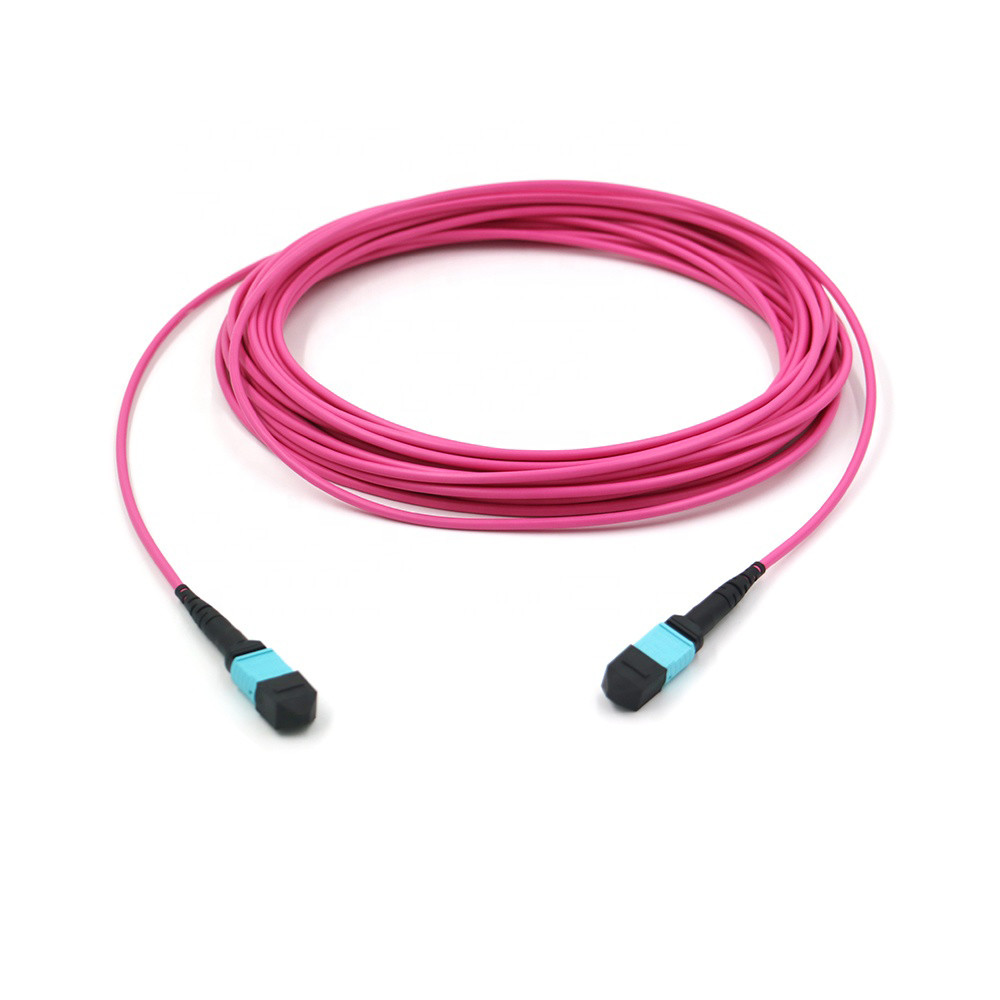

Elite Multimode OM4 50/125, Plenum OFNP Type B MPO patch cord 3m 10ft MTP-12 PC Female to MTP-12 PC Female
