UL94-V0 2 Ports SC Fiber Optic ATB 1Port 2Port FTTH Socket Desktop Indoor Wall Mounted Face Plate
Description:
Fiber Access Terminal is a user terminal product that achieves fiber-to-desktop solutions with a reasonable design of internal space. For home or work area, complete dual-core fiber access and port output, can fully meet the requirements of fiber bending radius, and protect the fiber out of the fiber core to provide safe protection. Appropriate radius of curvature, allowing a small amount of redundant fiber inventory, to achieve FTTD (fiber to desktop) system applications.
Feature:
1. Small size and light weight for easy installation
2. Double-layer design for easy installation and maintenance
3. Four cable entry, available from the top, bottom, right side into the line, easy to choose routing
4. Single-core, dual-core fiber adapter can choose
5. Material: ABS/PC+ABS Customized.
6. With dust-proof device to prevent dust
7. With a logo bar, easy to manage number and maintain
8. Applicable with fiber optic cable or indoor cable
9. Adapter Type: SC, LC
Application:
1. The telecommunication network, metropolitan area network, optical fiber communication system.
2. Optical testing equipment/instrument.
3. CATV optical fiber, optical fiber sensor.
4. Optical fiber broadband access network, FTTH optical fiber.
5. Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Performance index:
| Item | Technical data |
| Application | 3.0 x 2.0 mm drop cable or indoor cable |
| Fiber diameter | 125μm ( G652D, G657A1, G657A2, G657B3 ) |
| Tight cladding diameter | 250μm & 900μm |
| Mode of application | Singlemode & Multimode |
| Tensile strength | >50 N |
| End-use temperature | -40~+85ºC |
| Adaptor | SC & LC |
| Insertion loss | ≤0.2dB(1310nm & 1550nm) |
| output | 2 |
Configuration table:
| Model | Size | Max Capacity |
| A*B*C(mm) | SC | LC |
| TKS-1806-02D | 82.4*105.4*22.5 | 2 | 4 |
Standard packing: 200 pieces per carton
MOQ: 10 pieces
Sample: Free sample is available for quality evaluation.

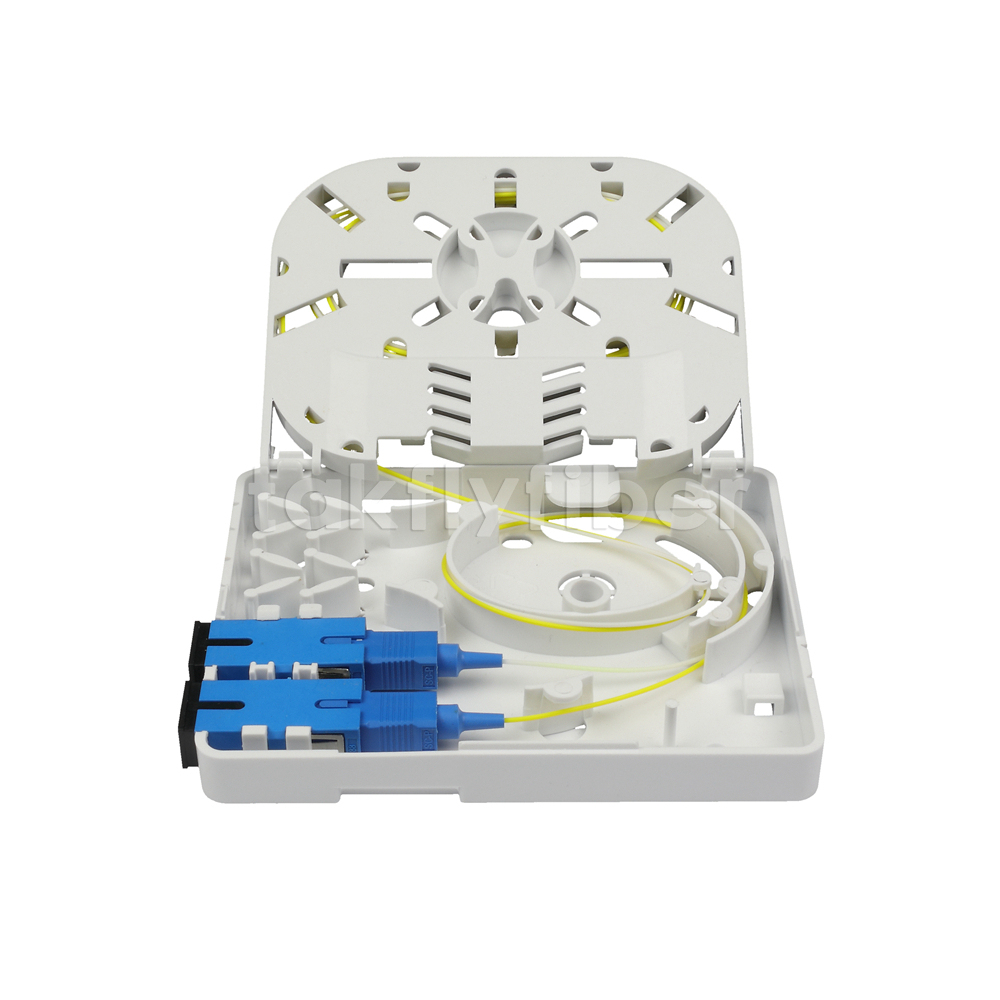

Pictures:
