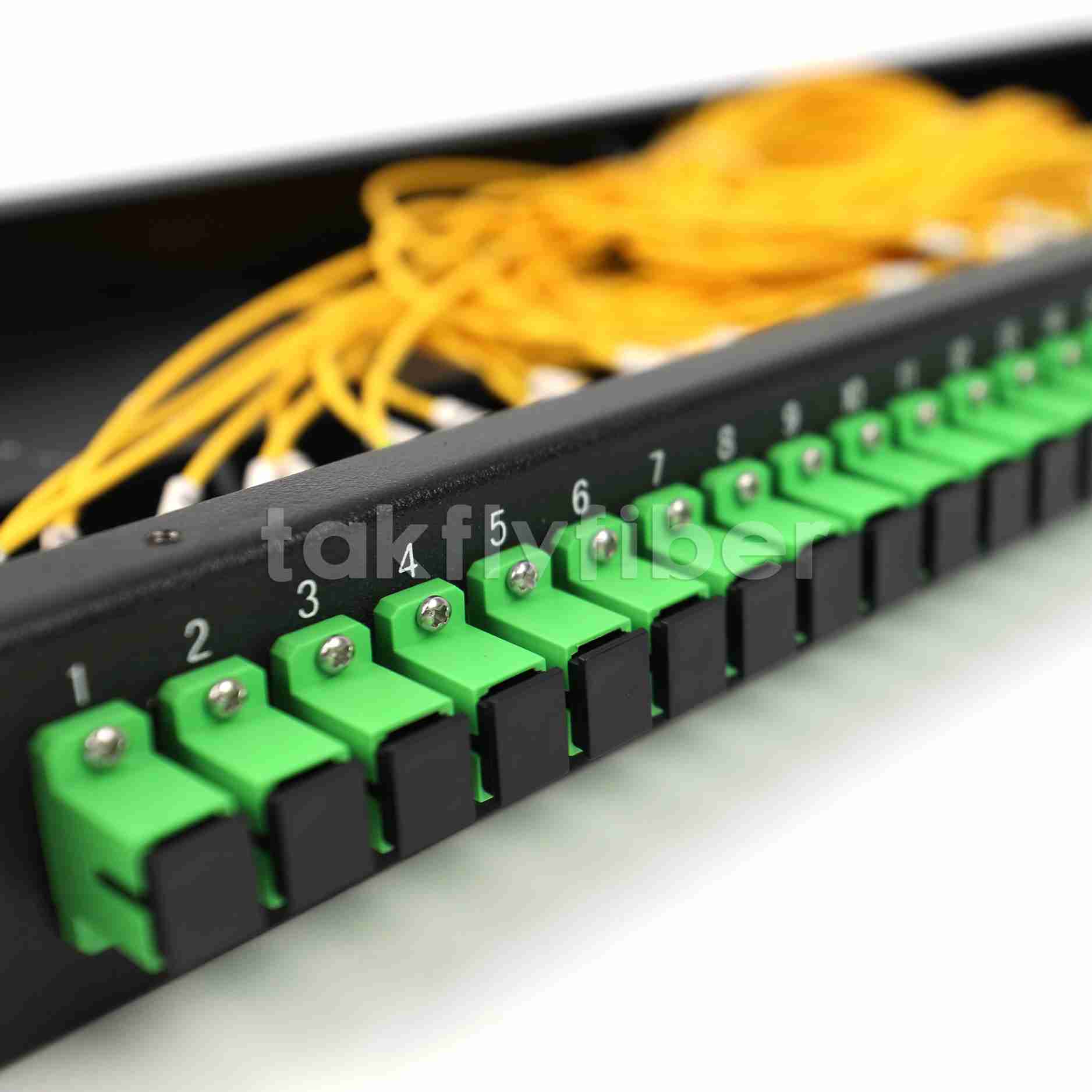

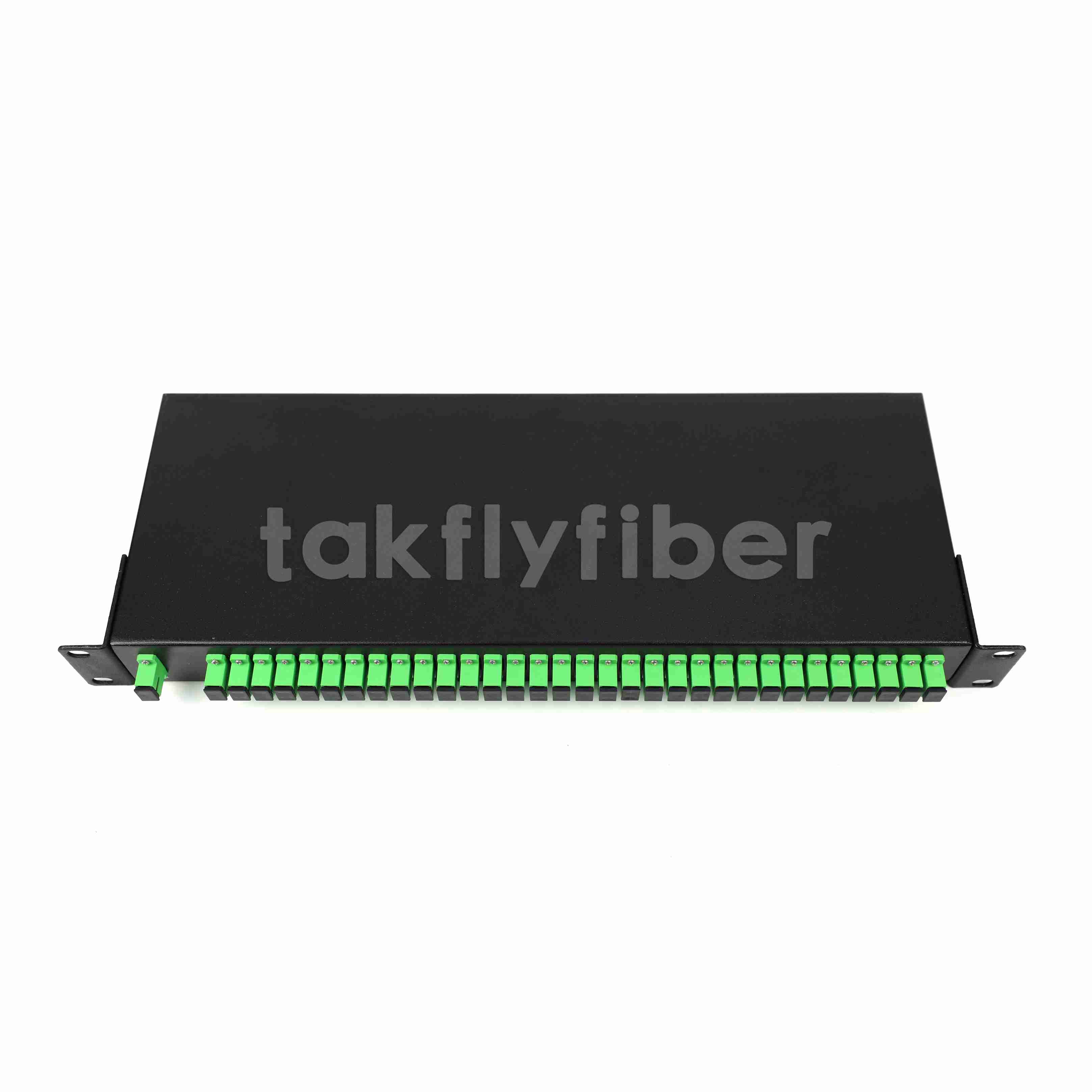

GPON 1x32 Rack Mount PLC Splitter , Single Mode G657A , SC Connector Pre-Terminated
Fiber Optic PLC Splitter Description
GPON 1x32 Rack Mount PLC Splitter is ideal for FTTx and PON applications. Takfly produces the high quality passive PLC Splitter that your business can rely on. With products continually in stock and same-day shipping, our expert technical support and knowledgeable sales team can get you to the right parts for the job.
Fiber Optic PLC Splitter Applications
● Telecommunication sector
● PON Syster
● FTTH
● CATV
● Video Transmission
Fiber Optic PLC SplitterSpecification
| Item | Parameter |
| Operating Wavelength(nm) | 1260 ~ 1650 |
| Type(1*N) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Max.Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max.Uniformity(dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Min.Return Loss(dB) | 55 |
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Type(2*N) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Max.Insertion Loss(dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max.Uniformity(dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Min.Return Loss(dB) | 55 |
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Fiber Type | ITU-T G657A1 , G657A2 and G.652D |
| Max.Temperature Stability(dB) | 0.5( Typical 0.3 ) |
| Operating Temperature(℃) | -40 ~ +85 |
| Storage Temperature(℃) | -40 ~ +85 |
All measurement are made at room temperature, and connectors not included
Fiber Optic PLC Splitter Packing Dimension
| Package type | Unit(mm) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Basic Packagin Metel box | L×W×H | 40*4*4 | 40*4*4 | 40*4*4 | 50*7*4 | 60*7*4 | 60*12*4 |
| Mini Module Packagin Metel box | 60*7*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | 100*40*6 |
| Module Packagin Plastic box | 100*80*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
| Package type | Unit(mm) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Basic Packagin Metel box | L×W×H | 60*7*4 | 60*7*4 | 60*7*4 | 60*7*4 | 80*20*6 | 80*20*6 |
| Mini Module Packagin Metel box | 60*7*4 | 60*7*4 | 60*7*4 | 80*12*4 | 80*20*6 | 100*40*6 |
| Module Packagin Plastic box | 100*80*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
With 21 years manufacturing experince in Fiber Optic Products, Takfly Group have a wide of PLC Splitters for your option, such as 250μm bare fiber PLC Splitter, 900μm mini steel tube PLC Splitter, ABS Box PLC Splitter, LGX Cassette type PLC Splitter, Rack Mount PLC Splitter, ect.
Takfly PLC Splitters have below advantages:
1. CE, ROHS, ISO9001, ISO14001 certified.
2. High performance, low insertion loss.
3. Branch Numbers from 1x2, 1x4, 1x8, 1x16, ....1x128, and 2x2, 2x4, 2x8, 2x16, 2x32, ......2x128, also with Non-standard 1x3 1x6 1x12 for options.
4. OEM Brand is availble.
If you’re dealing with FTTX, FTTH projects, welcome to inquire us for more details.
